When metalforming, the height of the form is critical. If it’s not correct the first time, it can be a costly mistake to fix. Below you’ll find a quick-reference guide on how to achieve the proper height.

Diagram “A” illustrates a 90-degree bend with insufficient height (H) to form properly. Consequently, stock must be added so the form is high enough (H); the stock is then cut off, which means additional tooling and an additional operation.

If (H) is not high enough, the cut-off tool may not have sufficient strength to stand up for a particular material or thickness. This may result in a higher-cost secondary operation such as milling.

Illustration “B” indicates how to determine the minimum inside height (H), which in this case equals 2-1/2 times the material thickness (T) plus the required bend radius (R).

MINIMUM INSIDE HEIGHT OF THE FORM

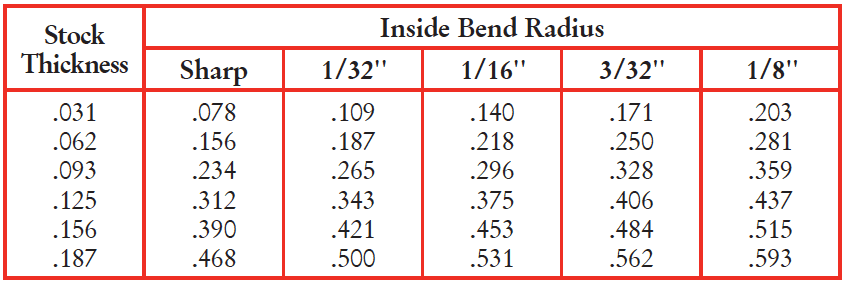

The concept illustrated by “B” above is converted to chart form below for convenience. These recommended minimum formed height dimensions are general to cover most variables of design, size, material types, tempers and thicknesses. Properly designed small parts and easily formed materials, such as aluminum, brass, copper, and mild steel, may be formed with a slightly lower minimum inside formed height (roughly 20% less).
